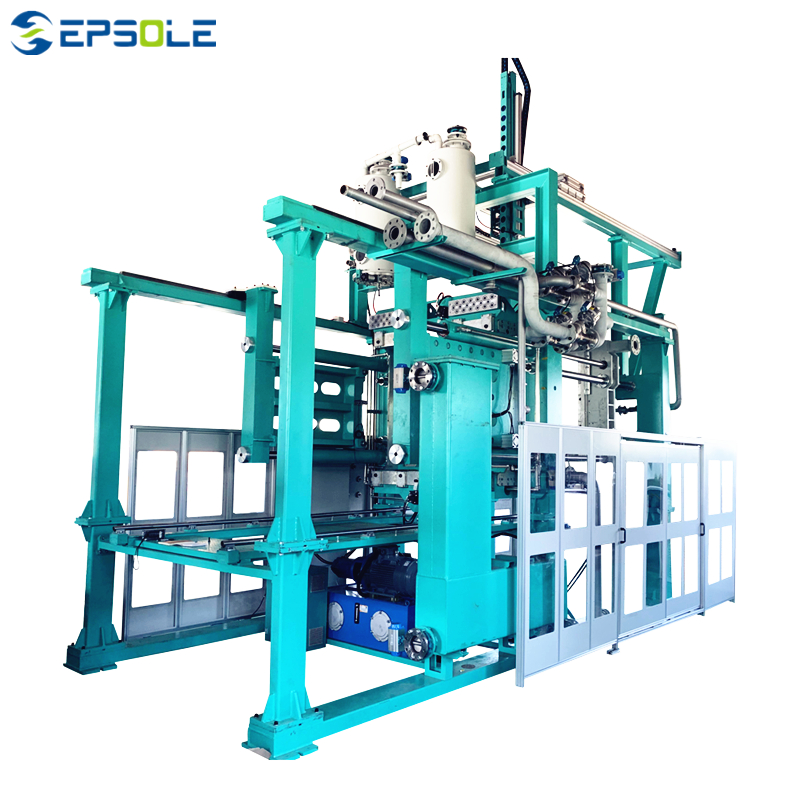

Automatic EPS Forms Shape Moulding Machine

Application:TV packing,fish box,vegetables and fruit boxes
Color:Blue Gray EPS Forms Moulding Machine

Automatic EPS Forms Shape Moulding Machine
Automatic EPS Forms Shape Moulding Machine
Automatic EPS Forms Shape Moulding Machine
Automatic EPS Forms Shape Moulding Machine

01WORKING PRINCIPLE

1. Mechanical Structure and Pipeline System:
— The steam chamber has a heat insulation die cavity system, thus steam consumption can be saved by 30%.
— Through a rotary level switch, the equipment has alarm and halt function if lack of materials, and also realizes the functions of pressure feed, vacuum feed and batch feed.
2. Hydraulic System:
— A digital encoder is used to control the stroke distance of mold opening and clamping, which is stable in speed conversion without pause and impact, realizes the safety protection function of mechanical, hydraulic and electrical triple interlocking, and meets the safety standard.

3. Steam Heating System:
— It is provided with a long-range control steam reducing valve for stabilizing flow, with control accuracy at ±0.2bar.
— Electro-pneumatic proportional valve imported from Germany is conducive to control steam inlet pressure, ejection pressure, feed pressure and compression pressure of the barrel by adjusting pressure of compressed air, setting by touch screen.
— Steam energy consumption is reduced by 25% compared with conventional equipment, and the moisture content of products is less than 7%, The high temperature demoulding is achievable (with cavity temperature at 75°C).

4. Electrical Control System:
— To use automatic protection and alarm systems such as numeric parameter display, fault detection, false alarm for position data, multi-mode running lights, detection and protection of motor running status can monitor each action of parts in production. It is available for upgrading of network management, networking with office computer for convenient management.
5. Fast mould change system exchange of dies is convenient, safe, which improves running efficiency of equipment significantly.

01Molding System

01MANUFACTURING

 Our factory is located in the Xindeng, Hangzhou.







Styrofoam Machine’s Anti-rust Processing







We focused on top quality shape molding machine and other foam equipment for over 20 years in China.







01SERVICE

Intelligent Big Data Management & Control System

  • Remote Monitoring: operate the remote computer through the network.
  • Fault Feedback: compare deviations
  • between system behavior and expected behavior.
  • Remote Maintenance: the engineer or manager connects to the target machine over the network and maintains the remote system locally.
